Phosphorus Measurement (TP)

PHOSPHO Total Phosphorus Analyser
PHOSPHO-LAB / PHOSPHO-PRO / PHOSPHO-FIX

The PHOSPHO family is an online analyser for continuous monitoring of the total phosphorus concentration in measuring ranges up to 50 mg/l P.

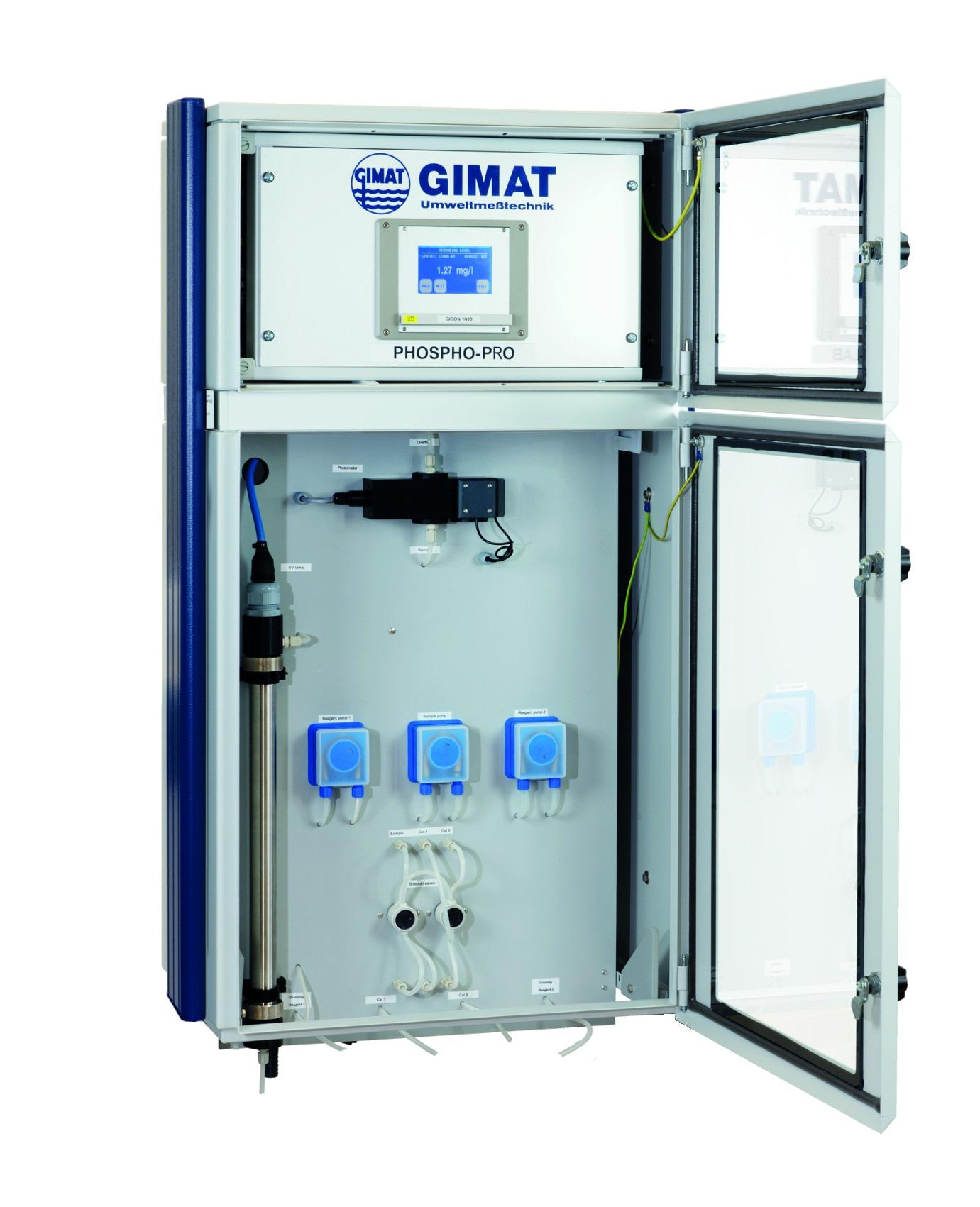

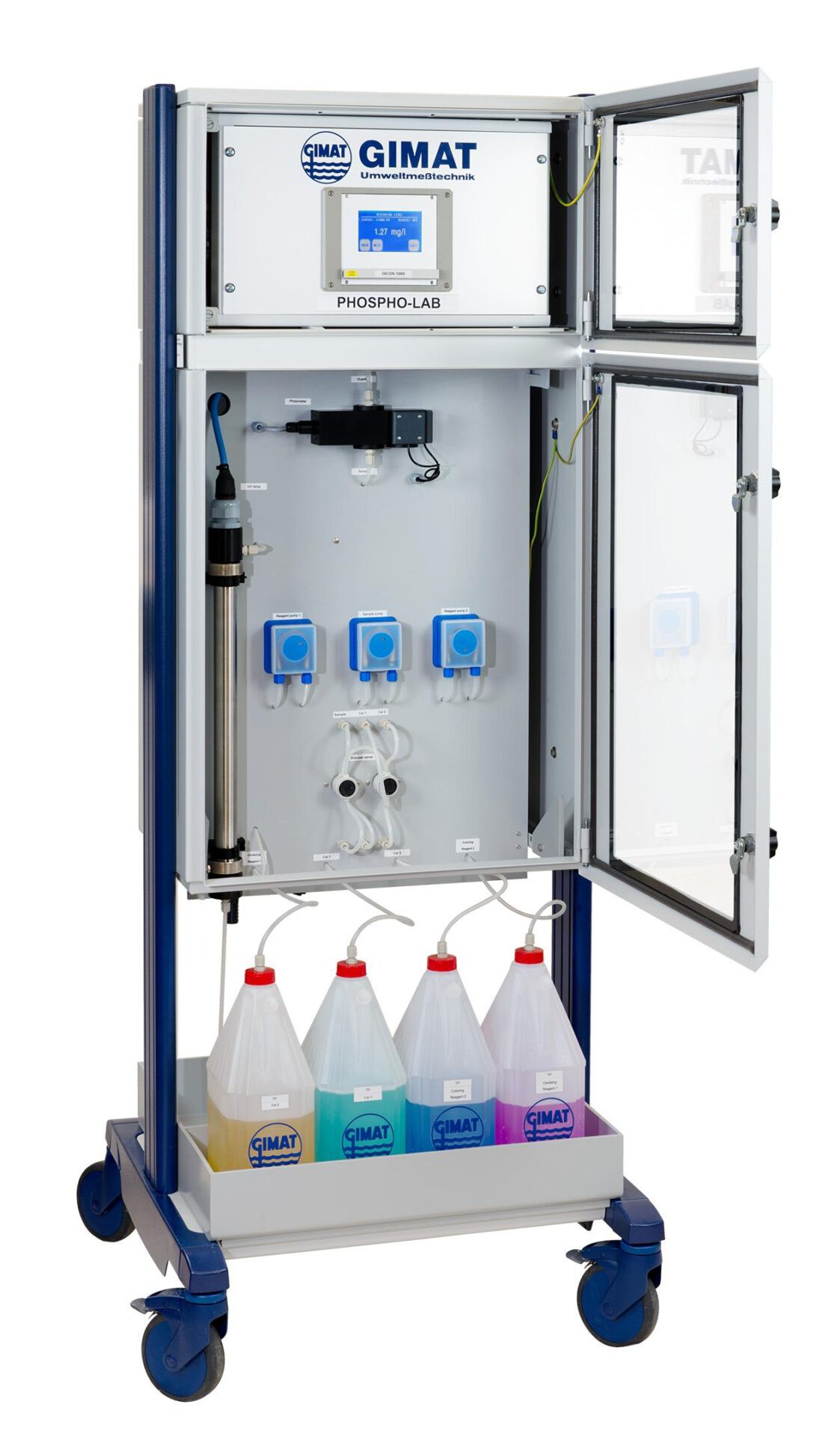

Available in three different housings: Standing with castors as PHOSPHO-LAB, wall-mounted as PHOSPHO-PRO or as PHOSPHO-FIX in a heated stainless steel cabinet for outdoor installation at the site of measurement.

Advantages

  • Low reagent consumption
  • Easy handling
  • Highly reliable
  • High accuracy
  • Robust design

Method

The instrument applies a method derived from DIN EN ISO 6878 using a UV digestion with peroxodisulphate and sulphuric acid followed by the photometric yellow method. This method is highly recommended by German wastewater association DWA.

A wide measuring range up to 50 mg/l is covered with high accuracy. The maximum measuring range can be reached without manual changes to the instrument settings or recalibration. This makes PHOSPHO highly reliable for detecting irregularities. Eco-Save feature: automatic adjustment of the reagent dosage to the actual measuring value can further reduce the low reagent consumption.

Applications

  • River water
  • Process water (paper industry, refineries, pharmaceutical industry)
  • Wastewater treatment plants
