Level Measurement (N)

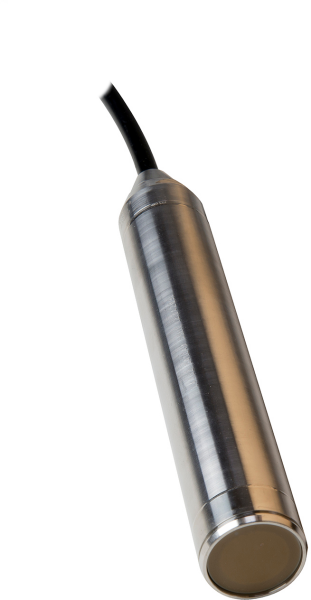

EDS 52 Pressure Level Meter

Absolute pressure meter for continuous level measurement in liquids. The high purity, long-term stable ceramic measurement cell is resistant against overload and vacuum.

Advantages

  • Excellent long-term stability
  • Robust design
  • Professional installation by GIMAT
  • ATEX certified
  • Easy to install

Method

The ceramic membrane of the measuring cell detects the hydrostatic pressure caused by the liquid column. This pressure induces a change of the capacity of the measuring cell. The filling level can be determined from the height of the liquid column.

Applications

  • Waste water
  • Deep wells
  • River water (dammed lakes, water power plants)

Download datasheet

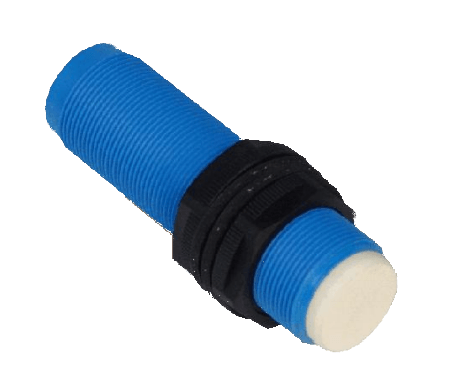

USS 80 Ultrasonic Level Meter

USS ultrasonic sensors provide a 4-20 mA output and can be used for level measurement without additional measuring transducer.

Professional support, installation and commissioning on site by GIMAT.

Advantages

  • Narrow cone angle
  • Teachable
  • Professional installation by GIMAT

Method

The sensor generates ultrasonic pulses which are reflected by surfaces. This echo is detected when it reaches the sensor. The distance of the object is calculated from the travel time of the ultrasonic signal. This measurement principle is suitable for most materials including liquids, as long as the sensor is installed in a right angle to the surface of the liquid.

Applications

  • Water Wastewater
  • Industrial filling
