Measuring Stations

AMS Single and AMS Twin Measuring Stations

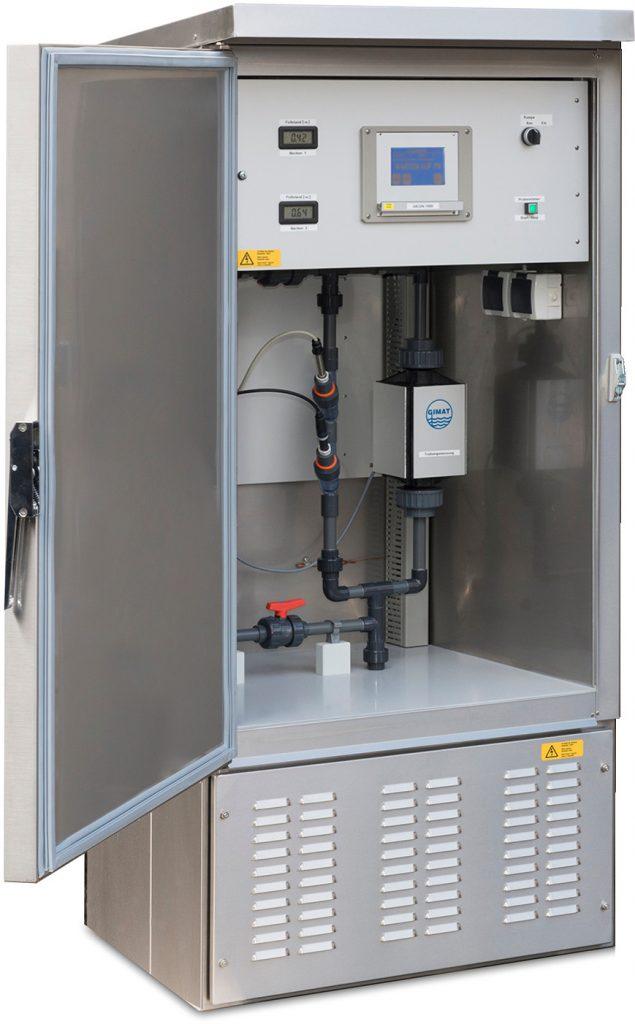

The AMS Single consist of a cabinet made of stainless steel for the safe storage of several online measurements including transducers. Analyser part and electronic part are structurally separated. The analyzer part is prepared for the installation of flow through cells and piping for installing several probes.

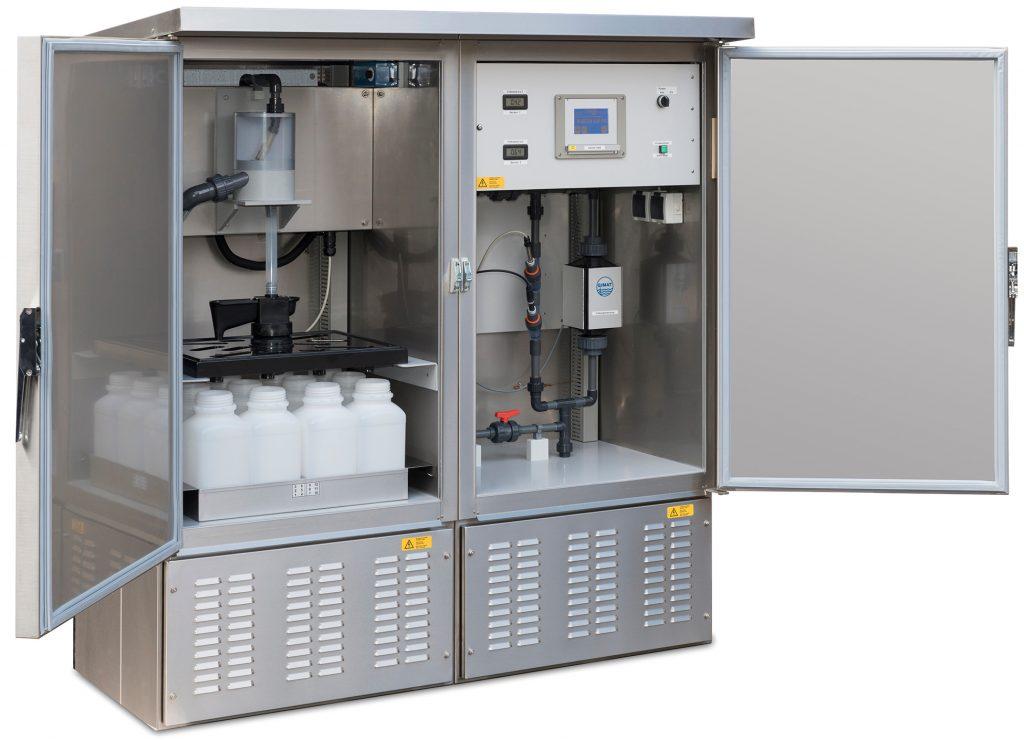

The AMS Twin consist of a double cabinet made of stainless steel. The left part of the cabinet is tempered and prepared for installing a sampling device. In the right-hand part of the cabinet several online measurements including transmitters can be accommodated safely. Analyser part and electronic part are structurally separated. The analyzer part is prepared for the installation of flow through cells and piping for installing several probes.

Advantages

  • Individually customizable
  • Universally applicable
  • Calibration in place
  • Sensors easily accessible
  • Optionally with overpressure monitoring
  • Optionally with automatic cleaning

Configuration

The equipment of the measuring stations can be selected freely from the GIMAT portfolio of measuring probes, so that each station can be optimally adjusted to the requirements of the upcoming measuring task. A measuring cabinet offers space for 3-4 measurements.

The most commonly used parameters include pH, conductivity, temperature, turbidity and flow.

Applications

  • Self-inspection of sewage treatment plants
  • Monitoring from:
    • Delivery Points
    • Direct dischargers
    • Indirect dischargers
    • Surface waters
